NVIDIA Jetson AGX Orin AI Machine Vision Controller | NPC-7312

arrow
arrow
Certifications
products
npc_7312

Features

  • NVIDIA Jetson AGX Orin module
  • 32/64GB of memory
  • Up to 12 ARM Cortex-A78AE cores, 2.2GHz
  • 6 * GbE Ethernet ports, M.2 for WiFi/BT, 4G/5G Support TPM 2.0, GPS module
  • Industrial-grade device
  • DC 9~36V, over-current and over-voltage protection
$503.00
delivery
in stock
DESCRIPTION
CONFIGURE & BUY
DESCRIPTION

NVIDIA Jetson AGX Orin

NVIDIA Jetson AGX Orin is a flagship computing platform for high-performance edge AI and autonomous machine systems. Based on the Ampere architecture, it offers up to 275 TOPS of AI computing power (INT8), meeting the demanding computing requirements of multi-sensor fusion and real-time decision-making. It integrates a 12-core ARM Cortex-A78AE CPU and a GPU with 2048 CUDA cores, supporting parallel processing of high-resolution visual data and complex AI inference tasks. The platform features high-speed PCIe interfaces, multi-channel camera support, and gigabit Ethernet, allowing for the expansion of connections to devices such as lidar and industrial buses. It is compatible with the NVIDIA Isaac and JetPack SDK ecosystems and is widely used in scenarios such as autonomous driving, intelligent robots, and smart cities, providing super-strong computing power and full-stack development support for end-to-end AI deployment.

Comprehensive I/O and Flexible Scalability

This product is specifically designed for the AI computing field, featuring comprehensive and flexible interface configurations that fully meet the diverse connection requirements in complex scenarios. In addition to being equipped with 4 USB 3.0 Type-A interfaces for high-speed data transmission, it also integrates industrial communication interfaces such as RS-232/485 and CAN bus, ensuring compatibility with traditional device access. The core advantage of this product lies in its 6 independent Gigabit Ethernet ports, which support parallel communication of multiple devices and large-scale data throughput, significantly enhancing the system scalability and stability for high-bandwidth applications such as distributed AI computing and real-time video analysis. It provides efficient and reliable network architecture support for scenarios such as intelligent manufacturing and edge servers.

Compact design

This product adopts a compact industrial design (230 x 165 x 91.5mm), deeply integrating the NVIDIA Jetson AGX Orin flagship AI computing core within a limited space, and is optimized for high-performance edge inference and complex task processing scenarios. Its structural layout fully considers the heat dissipation efficiency and hardware expansion requirements. Through a three-dimensional air duct and modular interface planning, it ensures the stable release of 275 TOPS computing power at all times, while supporting multi-channel sensor access and industrial-grade peripheral expansion. It provides a highly integrated solution for fields such as autonomous driving and intelligent robots, which have strict requirements for computing power density and system reliability.

Excellent cooling design

This product features an active cooling system, integrating high-performance fans and multi-layer heat sink fins to ensure the AI computing core operates stably under high loads. The cooling solution is precisely adapted to the compact body, optimizing the intelligent air duct and rapidly discharging heat to effectively balance performance and temperature control requirements. Even in confined or industrial complex environments, it can maintain low noise and high-efficiency cooling performance, providing reliable all-weather operation guarantees for edge AI applications.

Robust and Reliable

It's been tested according to IEC 60068-2-64 and IEC 60068-2-27 standards, including random vibration tests and mechanical impact tests. These tests show that the device can stand up to vibrations and shocks really well. Also, it has CE and FCC Class A certification, which means it performs great in terms of electromagnetic compatibility and safety. All this makes it perfect for industrial automation and tough environments.

SPECIFICATIONS

System

Processor
8/12 Cores A78AE 2.2GHz
Chipset
NVIDIA Jetson AGX Orin
SIO
NVIDIA Ampere, VRAM 32/64GB, 275/200 TOPS 2048/1792 CUDA Cores, 64/56 Tensor Cores
Memory
32/64 GB
OS
Ubuntu20.04

I/O interface

USB
4 x USB3.0 Type-A
Serial
1 x 12pin RS232 + RS485 + CAN,
1 x 12pin RS232 + RS422 + RS485, (Phoenix terminal, optocoupler isolated)
1 x RJ45 CAN
LED
4 x LED, (Run, Power, SSD, Error)

Expansion

M.2
1 x M.2 3052 (B-Key, Signal: PCIe + USB,expandable 4G/5G module)
1 x M.2 E-Key, expandable WiFi/BT module,optional WiFi 5/WiFi 6

Graphics

Graphics Processor
NVIDIA Ampere GPU
Interface
1 x HDMI2.1, Up to 4096 x 2160 @60Hz

Storage

Storage Device
64GB eMMC
1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4)
1 x Micro SD

Audio

Audio Codec
/
Audio Interface
1 x 3.5mm Combo Jack

Ethernet

LAN
2 x 10/100/1000 Mbps
4 x 10/100/1000 Mbps

Power

Power Input
9~36V DC IN
Power Interface
/

Others

OS Supports
Ubuntu 20.04
Watchdog Timer
1 to 255 sec./min. per step
TPM
TPM 2.0

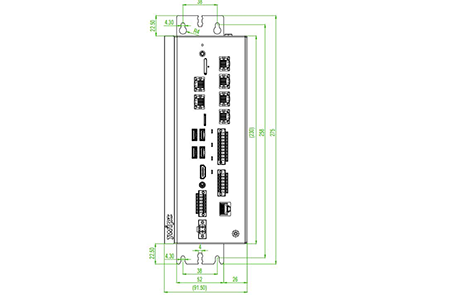

Mechanical

Dimensions
230 x 165 x 91.5mm (9.06” x 6.5” x 3.6”)
Weight
/
Mounting
Desk/Wall-mounting, Din rail mounting

Environment

Operating Temp.

-25~60℃ (-13~140 °F) w/ 0.7m/s airflow

Storage Temp.

-40~85℃ (-40~185 °F)

Humidity

10%~85% Humidity, non-condensing

Shock

With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration

Vibration

With SSD: 2Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis
