8″ Medical Tablet PC | MJ-80M

Certifications
products
mj_80m

Highlights

The MJ-80 Medical Tablet is designed to meet the rigorous demands of healthcare professionals, combining durability with cutting-edge technology. Its 8-inch IPS display (1200×800 resolution) ensures clear, detailed visuals, ideal for viewing patient data, imaging, or medical records. Powered by an octa-core ARM Cortex-A53 processor and running Android 7.1 (upgradable) or Linux OS, the MJ-80 offers reliable performance for critical medical applications. With IP65 water and dust protection, 4 ft drop resistance (MIL-STD-810G), and up to 8 hours of battery life, it is built to withstand the harshest environments, including frequent sanitization. Optional modules like NFC, a barcode reader, and a fingerprint reader streamline patient management and ensure compliance with medical data security. Wi-Fi 5, Bluetooth 4.0, and optional GPS further enhance connectivity, making the MJ-80 an indispensable tool in modern healthcare settings.

Features

  • 8″ IPS LCD Display (1200 x 800 Resolution)
  • Octa-core ARM Cortex -A53 Processor
  • Android 7.1 (Up Gradable to the Latest Version) or Linux OS
  • IP65 Water & Dust Protection
  • 4ft Drop/ Shock Protection (MIL- STD-810G)
  • Long Life Battery – Up to 8 Hours Runtime
  • Wi-Fi 5, Bluetooth 4.0, Optional GPS
  • IEC 62133, IEC60601-1
  • Optional Modules: NFC, Barcode Reader, and Fingerprint Reader
see detail specification in WIKI see detail specification in WIKI for register see detail specification in WIKI FOR COSTOM
Pricing Based on MOQ
delivery
in stock
DESCRIPTION
CONFIGURE & BUY
DESCRIPTION

Enhanced Performance with Octa-core ARM Cortex-A53 Processor

The MJ-80 rugged tablet is designed to deliver reliable performance in demanding medical and industrial environments. Powered by an Octa-core ARM Cortex-A53 processor, the MJ-80 ensures seamless multitasking, allowing healthcare professionals and field workers to manage complex tasks efficiently. With 2GB LPDDR3 memory (upgradable to 4GB) and 32GB of eMMC storage (expandable to 64GB), the MJ-80 provides ample processing power for handling essential medical applications and patient data in fast-paced settings.

Optimized for Medical and Industrial Use: Android 7.1 or Linux OS

Running on Android 7.1 (upgradable) or optional Linux OS, the MJ-80 is optimized for secure and flexible operations, making it the ideal choice for medical facilities and industrial applications. These operating systems enable smooth integration with medical software, real-time data access, and customizable program management, offering an exceptional user experience in any industry.

Rugged Durability for Harsh Medical Environments

The MJ-80 is built to endure the harshest environments, with an IP65 rating for protection against water and dust, ensuring durability in healthcare facilities where frequent cleaning and sanitization are required. Its rugged design meets MIL-STD-810G standards, providing resistance to drops from 4 ft, shocks, and vibrations, making it a reliable solution for hospitals, clinics, or fieldwork in rugged conditions.

Advanced Touchscreen with Wet and Glove Modes

The MJ-80 features a 10-point capacitive touchscreen engineered for the medical environment, supporting both wet and glove modes to ensure seamless usability in critical situations. Whether medical professionals are wearing gloves or using the device in humid conditions, the MJ-80’s responsive touch technology guarantees reliable performance without interruption. Additionally, the screen is equipped with advanced glass coating options, including anti-reflective, anti-glare, and anti-fingerprint properties. These coatings enhance visibility and ensure a clean display, allowing for optimal performance in any situation.

Fast Connectivity with Wi-Fi 5 and Optional GPS

Stay connected with Wi-Fi 5 and Bluetooth 4.0, enabling fast and stable wireless communication. The MJ-80 also offers an optional GPS module, ensuring precise tracking and data transfer in remote locations, making it the ideal device for fieldwork and healthcare applications that require reliable real-time updates.

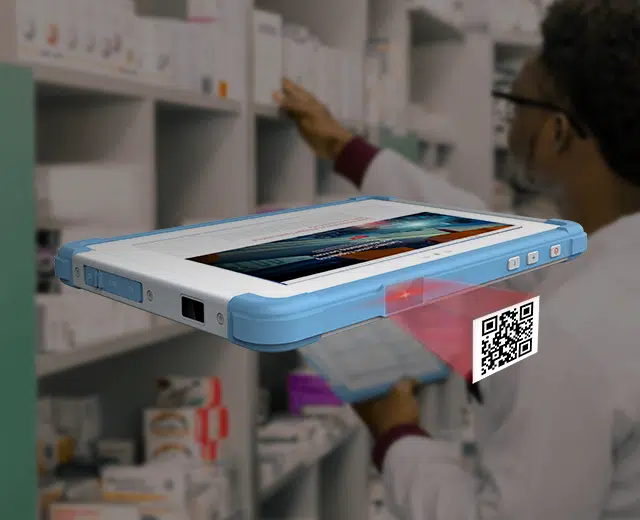

Optional Modules for Medical Needs

The MJ-80 offers unparalleled flexibility with optional modules tailored for the medical industry, including a barcode reader, fingerprint reader, and NFC capabilities. These customizable expansion options enhance the tablet’s functionality, making it well-suited for various healthcare applications such as patient identification, medication management, and inventory tracking. This adaptability ensures that the MJ-80 can meet the specific needs of your medical operations, providing healthcare professionals with the tools necessary to deliver efficient and accurate care.

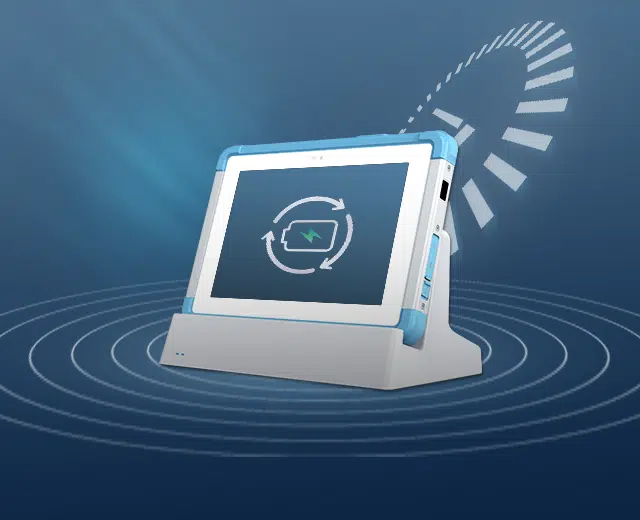

Long-Lasting Battery for Continuous Operations

Equipped with a 24Wh Li-ion Polymer battery, the MJ-80 delivers up to 8 hours of continuous use, ensuring minimal downtime in critical operations. Whether you’re managing patient data in a hospital or working on-site, the MJ-80’s long battery life supports uninterrupted productivity throughout the day.

Certified for Medical-Grade Performance and Safety

The MJ-80 meets stringent medical and industrial certifications, including IEC 62133 and IEC 60601-1, ensuring compliance with safety and operational standards. Built for reliable performance, this rugged tablet is the perfect solution for medical professionals and industries that demand high-quality, certified equipment.

SPECIFICATIONS

RUGGEDNESS

Waterproof
IP65 IEC60529
Drop Rating
MIL-STD-810G, 4ft to Plywood on 26 Corners
Shock Rating
MIL-STD-810G, Method 516.6, Procedure I, 40g 11ms
Vibration Rating
MIL-STD-810G, 514.6, Procedure I Category 4, Category 20, Category 24
ESD Protection
6KV Touch, 8KV Air
EMC Test
Follows FCC

SYSTEM

Processor
RockChip RK3368, 1.5GHz, Octa-core Cortex-A53
GPU
G6110 GPU 4K@60fps H.265 HDMI 2.0 with HDCP 2.2
Memory
2GB LPDDR3-1866
4GB LPDDR3-1866

OS
Android 7.1
Options:
Linux (Custom Projects)

Storage
32GB eMMC 5.1
Options:
64GB eMMC 5.1


DISPLAY

Screen Size
8″ IPS
Resolution
1200 x 800
Brightness
300 NIT
View Angle
+/- 85°
Contrast Ratio
800:1
Touchscreen
Capacitive 10-Point Multi-Touch
Chemically Hardened Cover Glass
Glass Coating Options:
Anti-Reflective
Anti-Glare
Anti-Fingerprint

COMMUNICATIONS

Wi-Fi
AP6255, 802.11 a/b/g/n/ac Dual-Band 2.4G & 5G
Bluetooth
Bluetooth v4.0
GPS (Option)
Tracks Up to 16 Satellites, 1575.42 MHz
Device GPS Accuracy < 15m, 95% Typical
Velocity Accuracy 0.05m/s
Heading Accuracy 0.3 Degrees
Horizontal Position Accuracy > 10m
NFC (Option)
Compliant with ISO/IEC 14443 A/B, 15693/18092, Distance 2.5mm

I/O INTERFACE

Sensors
Gyroscope
Light Sensor
Compass
Audio
1x Built-In Microphone
1x Internal 8ohm 1W speaker
Ports
1x USB 2.0
1x Micro USB @ 1A
1x Micro HDMI Output Type D
1x Audio Jack (3.5mm, 4 Pole, MIC input)
1x DC Jack 5.5mm OD Jack
Buttons
Power
Volume +, Volume –
2x Programmable
Barcode Reader (Option)
Newland NLS-EM2096, Built-In 1D/2D
Fingerprint Reader (Option)
Capacitive

MECHANICAL

Chassis
Front: Plastic + TPU Rubber, Back: Plastic
Dimensions
237 x 159 x 17mm
Weight
0.75kg

POWER

AC Adapter
12V DC 3A Output, 100-240V AC input, Standard US Plug
Options:
Medical AC Adapter
Multi-Nation Plugs
Battery
24WHh Battery, Li-on Polymer, 2S1P, 7.4V 3200mAh

ENVIRONMENTAL

Operating Temperature
0°C to 45°C
Storage Temperature
-20°C to 60°C
Humidity
10% to 90%
RoHS
Compliant

REGULATORY

Certification
FCC, IATA, IEC62133, IEC60601-1
CONFIGURATION
icon BASE CONFIGURATION:
Pricing Based on MOQ
in stock
cart ADD TO CART
Quantity:
Get Personalized Offer
Open this products and find more reference
